This 2-INCH THICK filter features 3-Stages of filtration, high dust holding capacity and low air resistance. These qualities make it a perfect replacement for expensive disposable filters in residential, commercial and geothermal system. Actual thickness is 1-3/4 inches. The actual air resistance rating of 0.12" WG is lower than most disposable filters. Available here in sizes up to 1200 sq inches. (Contact us for sizes over 1200 sq inches.) This filter contains layers of polypropylene that develop an electrostatic charge as air passes through the filter. This charge attracts and holds particulates until it is cleaned. It is a drop-in replacement for your 2 Inch thick disposable filter requiring no electricity or housing retrofitting. The filter can be cleaned by vacuuming or with water every 4-6 weeks.
This filter is 1-3/4 inch thick

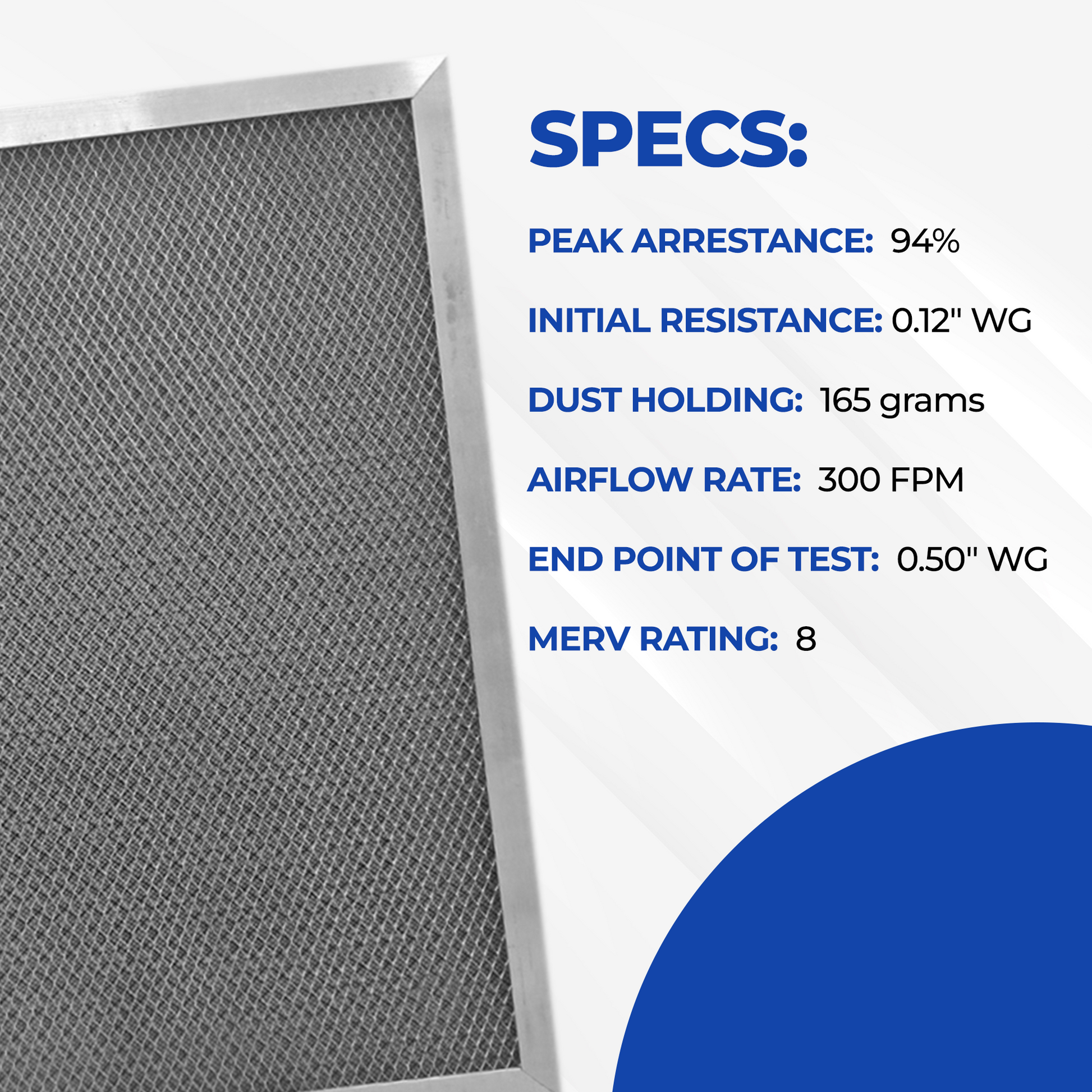

PEAK ARRESTANCE: 94.7%
INITIAL RESISTANCE: 0.12" WG
DUST HOLDING: 165 grams
AIRFLOW RATE: 300 FPM
END POINT OF TEST: 0.50" WG

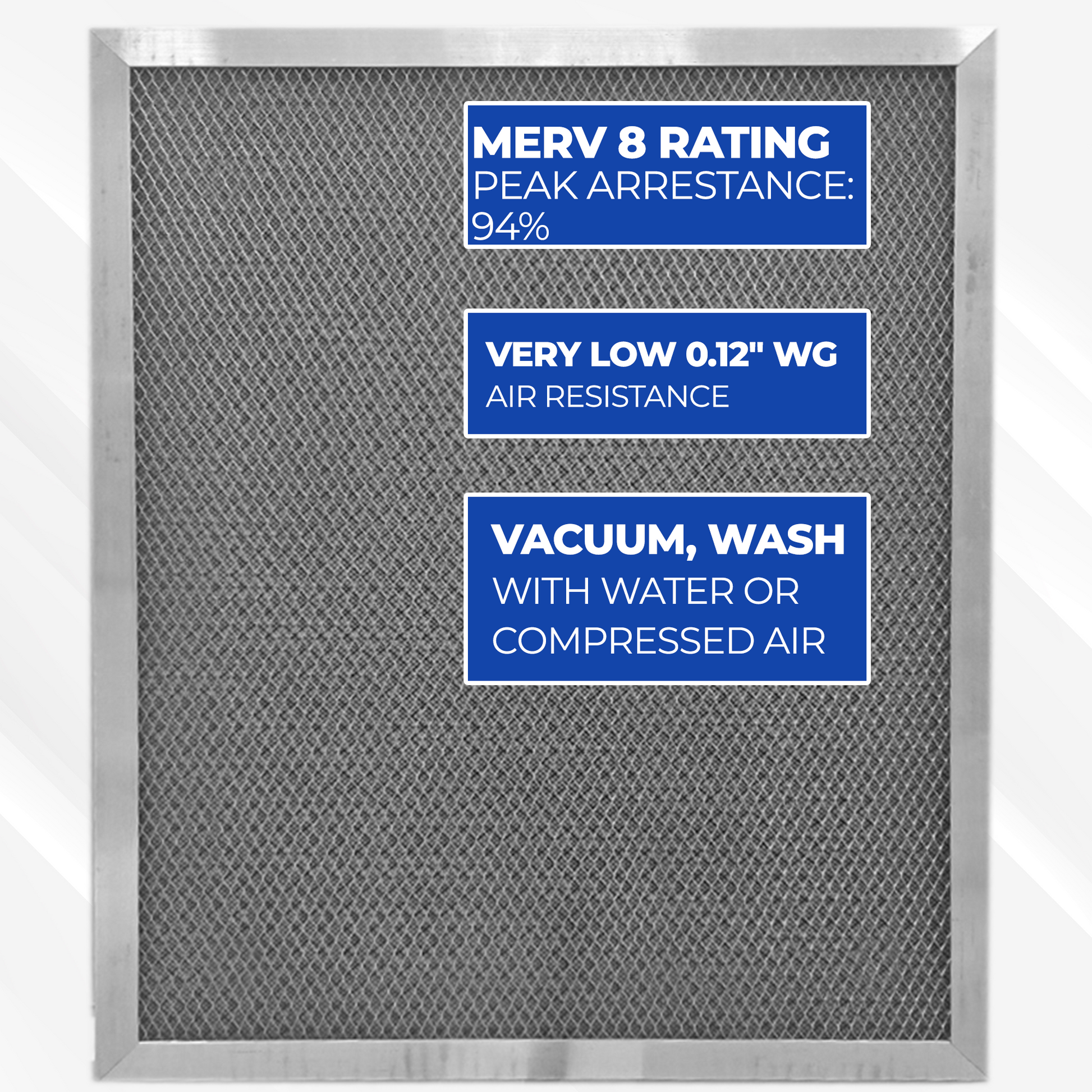

MERV RATING: 8
Installed easily and matched the existing paper filters. Easy to clean, but the frame was damaged during shipment due to the thin metal used. Time will tell how well it holds up.
