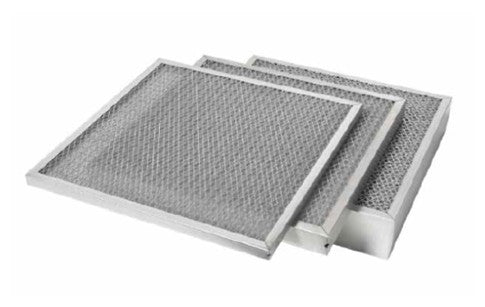

Custom Mist Eliminator / Moisture Separating Metal Filter

Custom Mist Eliminator / Moisture Separating Metal Filter

  • icon 99% Efficient on 3 Micron Water Droplets
  • icon Heavy Duty Construction
  • icon Washable and Reusable
$139.99 USD
$139.99 USD

Bulk Orders Available

Free Shipping Today

Buy More and Save!

Discount Will Appear in Cart

Volume pricing not available for this variant.

The best filters for all your residential, commercial and industrial needs.

Need Help Finding the Right Filter?

Let us help you pick the best filter for your needs. Simply use the Contact Us button to ask us any questions. Alternatively, try our quiz by clicking on the Help Me Choose a Filter button on the right side of the page.

Ver todos los detalles

Descripción

PRODUCT HIGHLIGHTS
• 99% Efficient on 3 Micron or Larger Water Droplets
• Heavy Duty Construction
• Washable and Reusable
• Drain Holes Along Bottom of Frame



This filter has an Aluminum Frame - It is also available in Galvanized and Stainless Steel frames (Contact us for pricing)

Application: Our Moisture Separator is an impingement type panel filter that serves two important functions: its primary purpose is to collect large water droplets and oil mist from the airstream and divert the liquid to an appropriate drain. Its secondary function is as a heavy duty washable particulate filter. The HM Series is built for use in outside air ducts, side access housings and built-up filter banks. Other applications include chilled water coils and mist-type humidifiers. Our Moisture Separator filter is designed for higher airflow velocities. It performs best in a system running at no more than 10% above or below its rated velocity of 500 fpm. It has been independently tested to by over 99% efficient on water droplets measuring 3 microns and larger.

Construction: Our Moisture Separator filter uses a 24-gauge metal frame to enclose the media pack consisting of multiple layers of corrugated and flat screen wire positioned for efficient drainage. The pack is then placed between two layers of expanded metal, and is made to fit firmly inside the frame giving it exceptional strength and durability.  The bottom of the filter has 3/8” diameter drain holes and the top is identified with proper positioning for drainage and airflow. The frame is made with mitered corners and is secured with pop-rivet(s).

Production on these filters takes about 3 weeks.

Preguntas frecuentes

Sí. Nuestros filtros permanentes están disponibles en tamaños estándar y personalizados. Ofrecemos 12 tipos de filtros diferentes para satisfacer la mayoría de las necesidades.

Llámenos o envíenos un correo electrónico. Podemos ayudarle a elegir los filtros más adecuados para su aplicación.

Algunos de los primeros filtros permanentes eran muy restrictivos y, en algunos casos, le dieron mala reputación al producto. Algunos contratistas de HVAC aún les dicen a sus clientes que todos los filtros permanentes son malos.

Sin embargo, no todos los filtros permanentes son iguales. Como con cualquier tipo de filtro, existe un equilibrio entre la retención de polvo y la resistencia del aire. Nuestros filtros tienen una resistencia del aire muy baja.

Incluso nuestros filtros más restrictivos no son más que un buen filtro desechable plisado.

Con un mantenimiento adecuado, puede esperar que su filtro permanente dure al menos tanto como su unidad de climatización. Algunos de nuestros clientes llevan usando sus filtros más de 15 años y seguimos sumando.

No. Todos nuestros filtros son electrostáticos. Cuentan con capas especiales de polipropileno que generan una carga estática natural al pasar el aire a través del filtro. Esta carga se rompe y el polvo se libera al limpiar el filtro.
